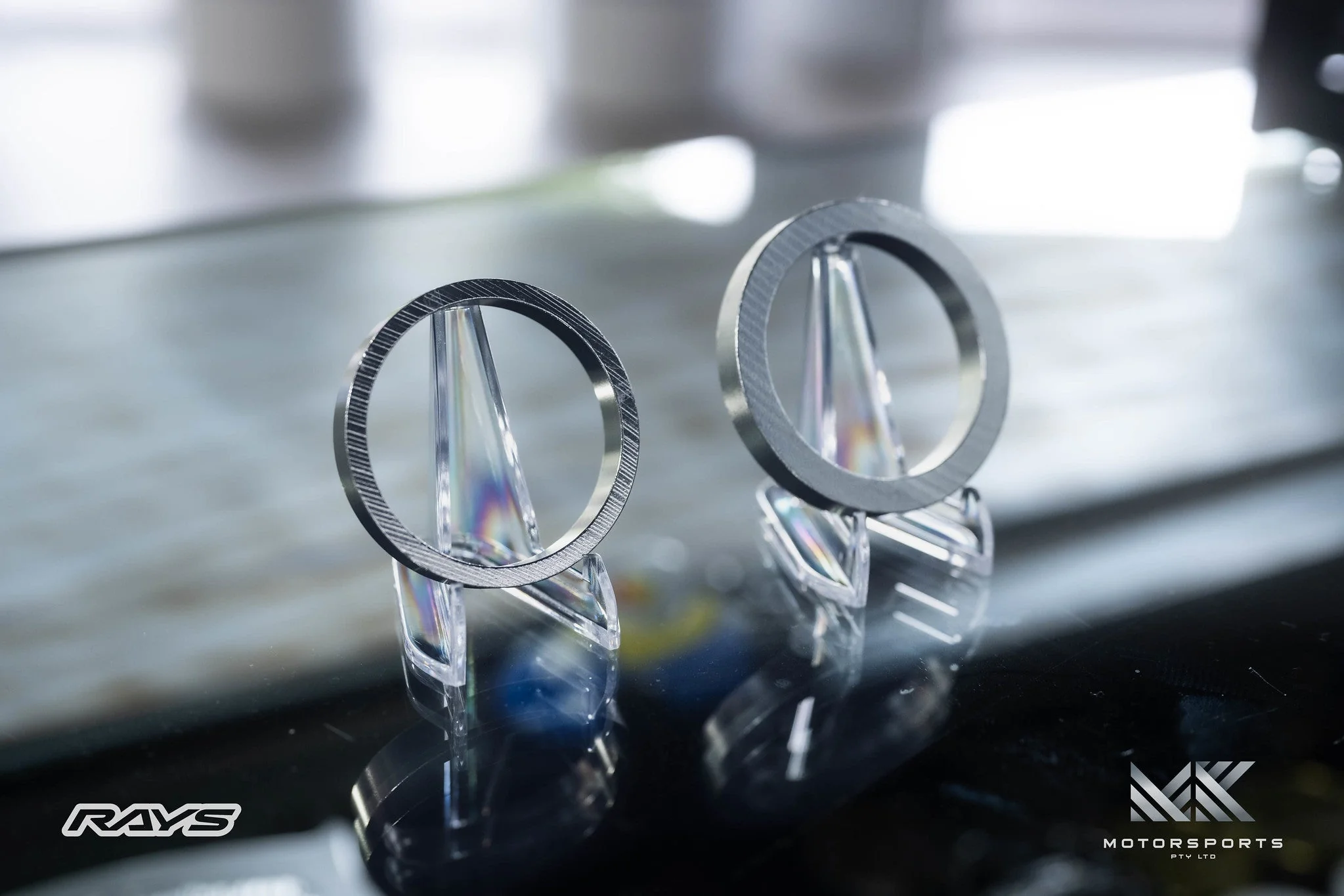

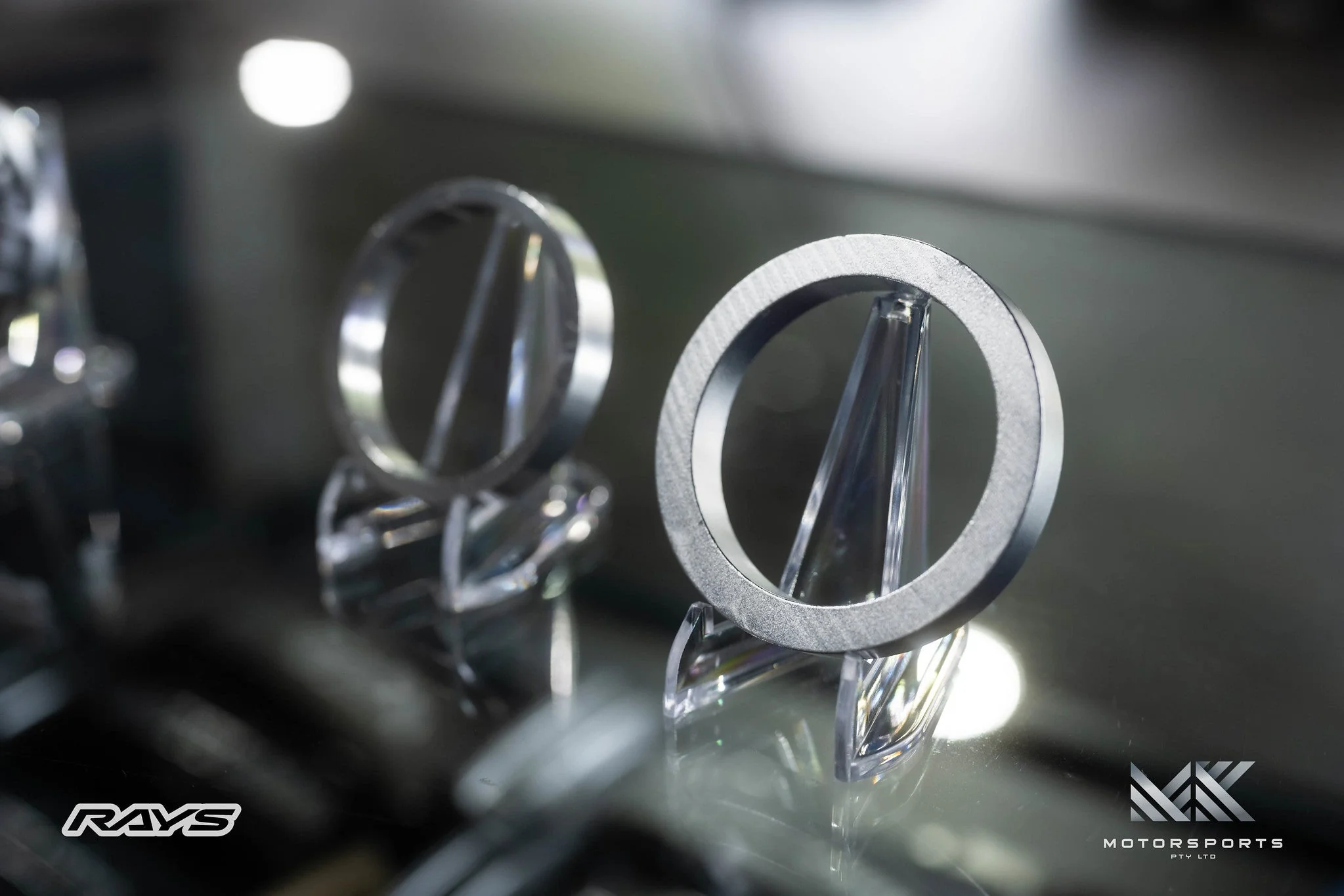

RAYS Hub Rings
Rings / Spigot Rings or Alloy Wheel Hub Centric Rings are designed to fill in the gap between the hub of the car and the center bore of the wheel. Most wheel manufacturers design their wheels with a center bore large enough to fit on most cars. Therefore, since wheel manufactures make their center bore large enough to fit most cars, most wheel fitments have a gap between the hub and the center bore. Improve the fitment & balance of your aftermarket wheels with hub-centric rings.
This gap usually doesn't allow for the wheel to fit hub-centric but rather lug-centric which causes vibration. Therefore, to fill the gap and ensure the fitment is hub-centric, hub rings are used.
Alloy Wheel Hub Rings are used to ensure that an alloy wheel is centered correctly on a hub of a vehicle. This is very important to ensure that your alloy wheels are safe and secure.
Set includes 4 Hub rings.
| Outer Diameter/Inner Diameter（mm） | Maker | Fitting |
|---|---|---|
| 65/54.1 | TOYOTA | AQUA, ALLION, WISH, VITZ, COROLLA, SUCCEED, SPADE, PASSO, PRIUS |
| PREMIO, PROBOX, PORTE, RAUM, SIENTA, TANK, ROOMY, PIXIS | ||
| LEXUS | CT | |
| NISSAN | NV100 CLIPPER ('15/3～) | |
| MITSUBHISHI | DELICA D:2, TOWNBOX | |
| SUBARU | STELLA, DIAS WAGON, TREZIA, PLEO, LUCRA, JUSTY, CHIFFON | |
| DAIHATSU | ATRAI WAGON, COPEN, SONICA, BOON, MOVE, MIRA, TANTO, WAKE, CAST, THOR | |
| 65/54.1 | MAZDA | DEMIO, VERISA, ROADSTER (NA, NB, ND）, FLAIR, FLAIR CROSSOVER, CAROL, SCRUM |
| SUZUKI | AERIO, SWIFT (except SWIFT SPORTS）, SPLASH, SOLIO, HUSTLER, ALTO, IGNIS | |
| EVERY, SPACIA, WAGON R | ||
| 65/56.1 | TOYOTA | 86 |
| NISSAN | DAYZ | |
| HONDA | INSIGHT, AIRWAVE, That's, ZEST, VAMOS, FIT, MOBILIO, LIFE | |
| N BOX, N-ONE, N-WGN, FREED (for 4-100), GRACE, SHUTTLE, S660 | ||
| SUBARU | OUTBACK (for 5-100）, IMPREZA (for 5-100）, EXIGA, FORESTER (2018～）, LEGACY (for 5-100）, BRZ, XV | |
| 65/56.1 | MITSUBISHI | COLT, COLT PLUS, MINICA, MIRAGE, LANCER, ek WAGON, ek SPACE |
| 65/59.1 | SUBARU | SAMBAR, STELLA（～2010）, R1, R2 |
| 65/60.1 | NISSAN | WINGROAD, CUBE, TIIDA, NOTE, MARCH, LATIO |
| 73.1/60.1 | TOYOTA | ISIS, AVENSIS, ALPHARD, VELLFIRE, NOAH, VOXY, ESQUIRE, ESTIMA |
| AURIS, CAMRY, COROLLA RUMION, CROWN, HARRIER, PRIUSα | ||
| MARK X, RAV4, SAI, C-HR | ||
| LEXUS | GS、GS-F、 HS、 IS、IS-F、LFA、RX、RC、RC-F、NX | |
| DAIHATSU | ALTIS, MEBIUS | |
| SUZUKI | ESCUDO, SX4, KIZASHI, SWIFT SPORTS | |
| 73.1/56.1 | SUBARU | IMPREZA (for 5-114.3), LEVORG, LEGACY (for 5-114.3), OUTBACK (for 5-114.3), WRX |
| 73.1/64.1 | HONDA | ACCORD, ODYSSEY, CIVIC, STEP WAGON, STREAM,CR-V, CR-Z, JADE |
| VEZEL, S2000 (rear), NSX (～'04 rear), FREED (for 5-114.3) | ||
| 73.1/66.1 | NISSAN | X-TRAIL, ELGRAND, CIMA, JUKE, SYLPHY, SKYLINE, SERENA, TEANA |
| FAIRLADY Z, FUGA, PRESAGE, MURANO, LEAF, GT-R, NV200 VANETTE | ||
| MITSUBISHI | DELICA D:3 | |
| 73.1/67.1 | NISSAN | LAFESTA HIGHWAY STAR |
| MAZDA | AXELA, ATENZA, BIANTE, PREMACY, ROADSTER（NC）, CX-3, CX-5, CX-8 | |
| MPV, RX-8 | ||
| MITSUBISHI | OUTLANDER, GALANT FORTIS, GRANDIS, COLT RALLIART VERSION R | |
| DELICA D:5, LANCER EVOLUTION, RVR | ||
| 73.1/70.1 | HONDA | S2000 (front), NSX (～'04 front) |
| 75/64.1 | HONDA | LEGEND |
| 75/60.1 | LEXUS | LS、LC |
| 72.6/60.1 | LEXUS | LS、LC |
| Outer Diameter/Inner Diameter（mm） | Maker | Fitting |
|---|---|---|
| 73.1/57.1 | VW | GOLF (Ⅴ/Ⅵ/Ⅶ), TOURAN, JETTA, EOS, PASSAT, SCIROCCO, The BEETLE (16C) |
| AUDI | A1 (8X), A3 (8P, 8V), A4 (8E), A5 (8T, F5), A6 (4F), A8 (4E), TT (8J, 8S), Q3 (8U) | |
| 73.1/66.6 | BENZ | A, B, C, E, S, CLA, CLS, GLA, GLC, GLE, GLS, SL, SLC, V Class |
| AUDI | A4 (8K, 8W), A5 (8T, F5), A6 (4G), A7 (4G), A8 (4H), Q5 (8R, FY) | |
| BMW | 2er (F45, F46), 5er (G30, G31), 7er (G11, G12), i3, i8 | |
| BMW MINI | F54～F57 | |
| PORSCHE | MACAN | |
| 75/72.6 | BMW | 1er, 2er (F22, F23), 3er, 4er, 5er (E60/61, F07/10/11), Z4, 6er, X3, X5 (E53), 7er (F01～F04, X6 (E71 Rear only） |
| BMW MINI | CROSSOVER (R60), PACEMAN (R61) | |
| 75/74.1 | BMW | 5er (E39), X5 (E70, F15), X6 (E71 Front only, F16) |
| 65/58.1 | ALFA ROMEO | 147, 156, 4C, GTV, SPYDER (～2005) |
| 73.1/65.1 | PEUGEOT | 1007, 206, 207, 208, 2008, 307, 308, 3008, 508, 5008, RCZ |
| CITROEN | C2, C3, C4, C5 (～’08), DS3, DS4, DS5 | |
| 65/56.1 | BMW MINI | R50～R59 |
| 65/56.6 | OPEL | VITA (B/C), ASTRA (F) |
| 65/57.1 | VW | LUPO, POLO (6N/9N/6R), GOLF II, GOLF II (VR6/GTI), GOLF II (Cli/Gli), GOLF IV, NEW BEETLE (9C), up! |
| AUDI | A1, A3 (8L), TT (8N) | |
| 65.1/63.4 | VOLVO | V40, V60, S60, XC60, XC90 (2015～) |
| 73.1/66.1 | RENAULT | LUTECIA RS（RM）, MEGANE (’11～), KOLEOS |
| 65/60.1 | RENAULT | CAPTUR, GRAN SENIC, KANGOO, LAGUNA, LUTECIA, TWINGO |
| 73.1/63.4 | LAND ROVER | RANGE ROVER EVOQUE, FREELANDER 2 |
| VOLVO | V40, V60, S60, XC60 | |
| 66.6/57.1 | VW | GOLF (Ⅴ/Ⅵ/Ⅶ), TOURAN, JETTA, EOS, PASSAT, SCIROCCO, The BEETLE (16C) |
NOTE: QUANTITY IS PER SET.
Research before purchase is recommended.
